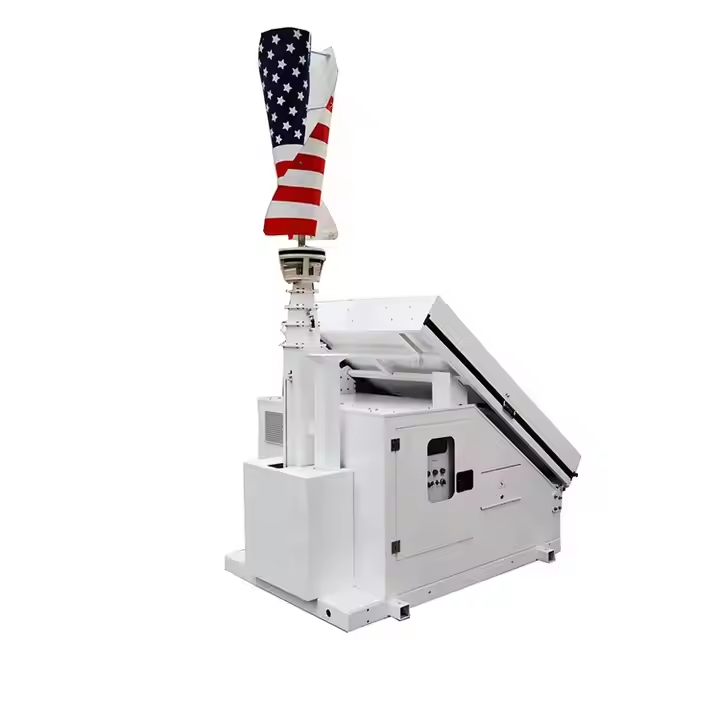

SM04 Solar Light Tower with Wind Turbine
E
ENM-SM04 Series Portable solar lighting tower with wind turbine wind power Specifications:
| Main Features (T100-7M) | |
| Control Options | LCD panel (Remote Control + PC for your options) |
| Battery Charging Type | Solar and Wind Power |
| System Voltage | DC24V |
| Working Temperature | -20ºC - 50ºC |
| Charging Time | 8 hours |
| Running Time | 45 hours |
| Lighting System | |
| Type | 4*50W LED Flood Lights |
| Light Output | 39000lm |
| Illuminated area @ 7m | 900 -1200 m2 |
| Rotation / Tilt | 360° Rotatable and ±90° Tiltable |
| IP rating | IP65 |
| Solar Panel and Wind | |
| Solar Panel Wattage | 3*420W |
| Solar Panel Type | Mono crystalline Silicon, 21.7% efficiency |
| PV Controller | MPPT 40A, 95% efficiency |
| Wind Power | 200W |
| Wind Motor | 200W |
| Battery and Inverter | |
| Type | Lead-acid ( Lithium for your option) |
| Battery Pack | 4* 150AH DC12V |
| Battery Capacity | 7200W.H |
| Inverter Output | 110V / 240V / 380V |
| Output Type | Sine Wave |
| Output Connections | 1* 10A + AC sockets + 1* 5A , USB2.0 |
| Inverter Power | 3KW |
| Lifting System | |
| Type | Electric / Manual for your options |
| Mast Height | 2.5 - 6M Retractable |
| Wind Resistance Rating | Level 8 117KM/H |
| Material | Hot-Dip Galvanized Steel |
| Trailer | |
| Axle | Single |
| Tire and Rim | 2*14 inch Pneumatic Tires |
| Stabilizer | 4 Support legs, Manual |
| Tower Hitch | Ball Type, with towering eye ∅50mm |
| Drawbar | USA / EU / AU standard |
| Trailer Speed | 80 km/h |
| Shipment | |
| Transport Dimension | 2050*1883*2564mm |
| Deployed Dimension | 3070*3627*7000mm |
| Total Weight | 1200kgs |
| Loading Plan : | 40HQ: 6 pcs |
Features:

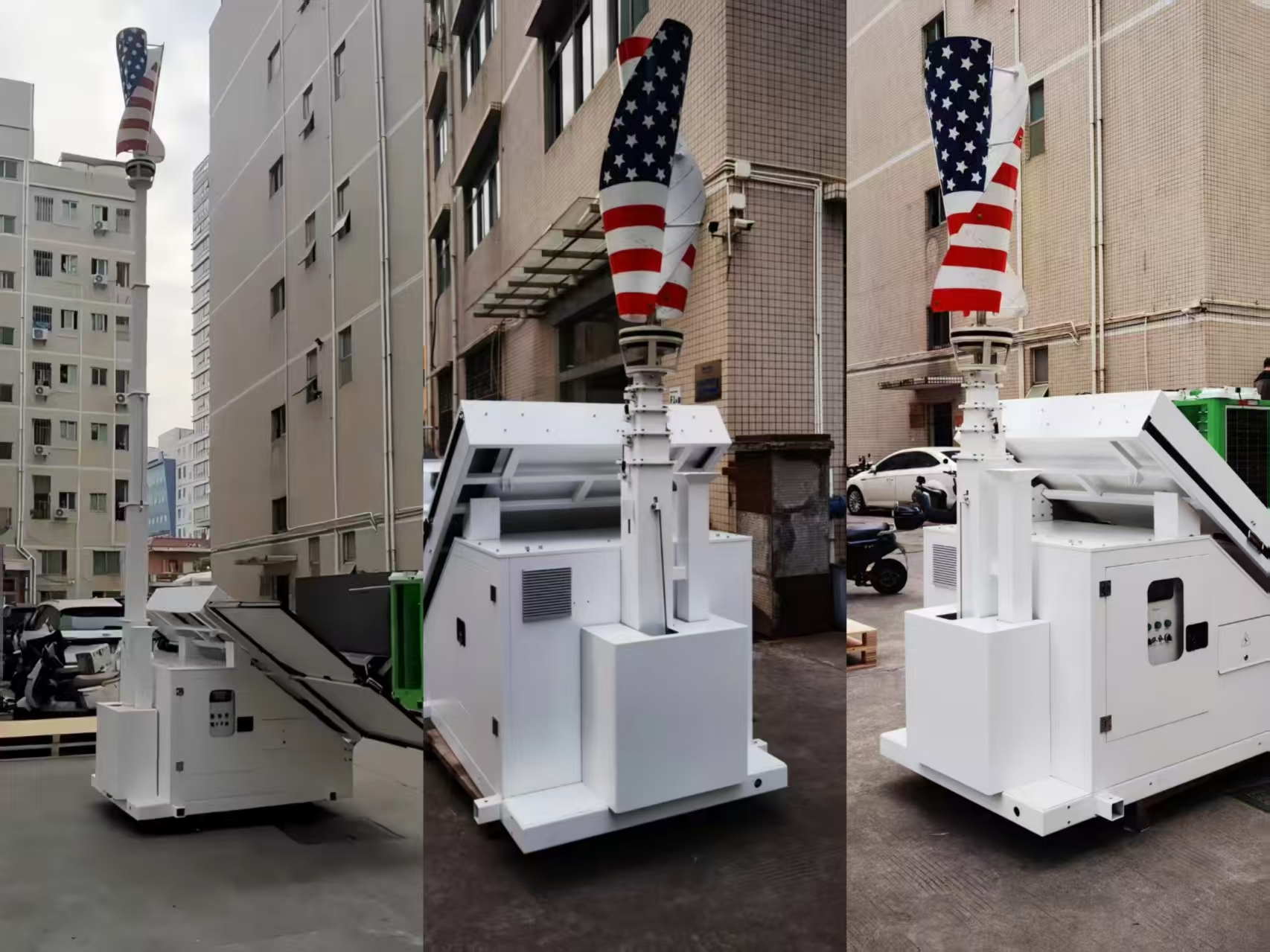

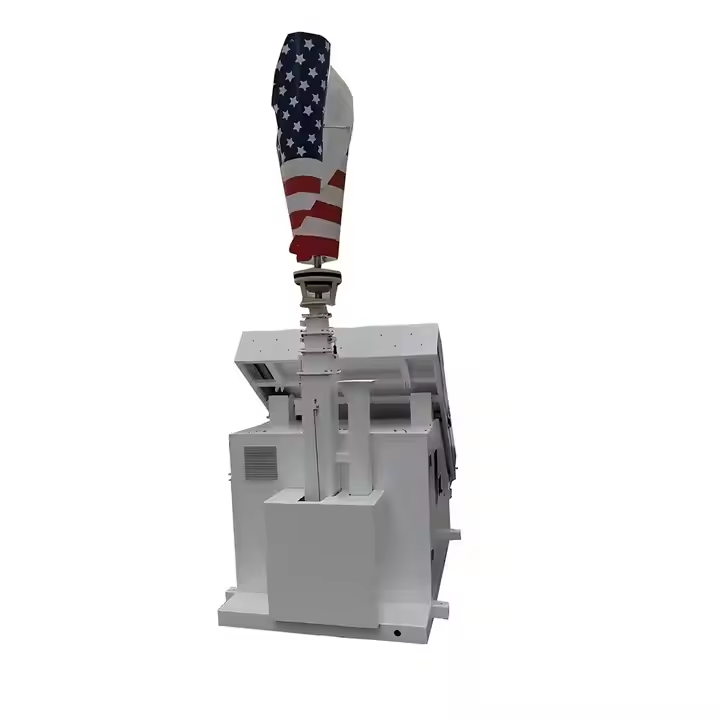

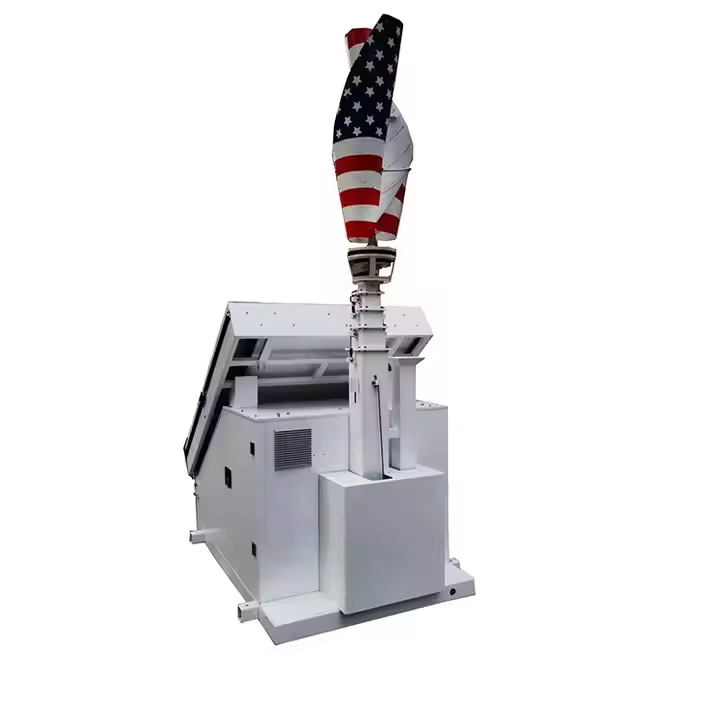

SM04 Series Solar Light Tower with Wind Turbine include the addition of wind turbine to the standard mobile solar light tower to create additional power 24 hours a day in locations where conditions are favorable.
Beneficial in areas with 6+mph average wind speed and provides high-intensity, bright white lighting.
The unit features two independent, solar, off-grid systems that are equipped with high quality solar power arrays high-lumen LED floodlights; and long-life, deep-cycle AGM batteries.
The light tower is fully adjustable from 6M-9M pole in height. Lights can be tilted up/down and rotated individually, and the mast can be rotated.
We feature shatter resistant solid state components that are rated IP66 or greater. Our factory LED lights run up to 5x longer between changes than metal
halide lights.
Lights can be timer-controlled, run via photocell, or operated manually.
Our systems are housed in an industrial quality portable trailer that can be easily towed to the destination.

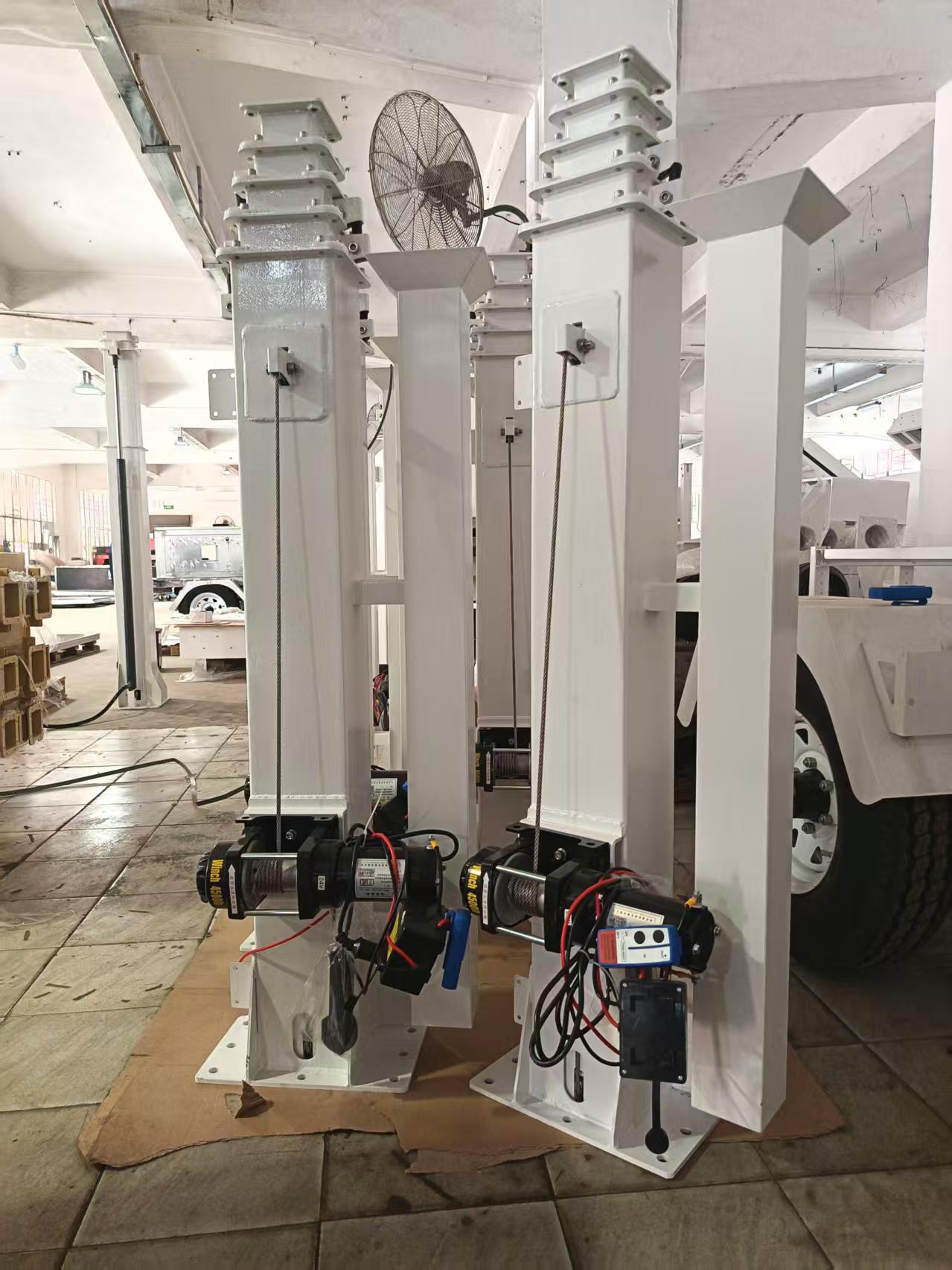

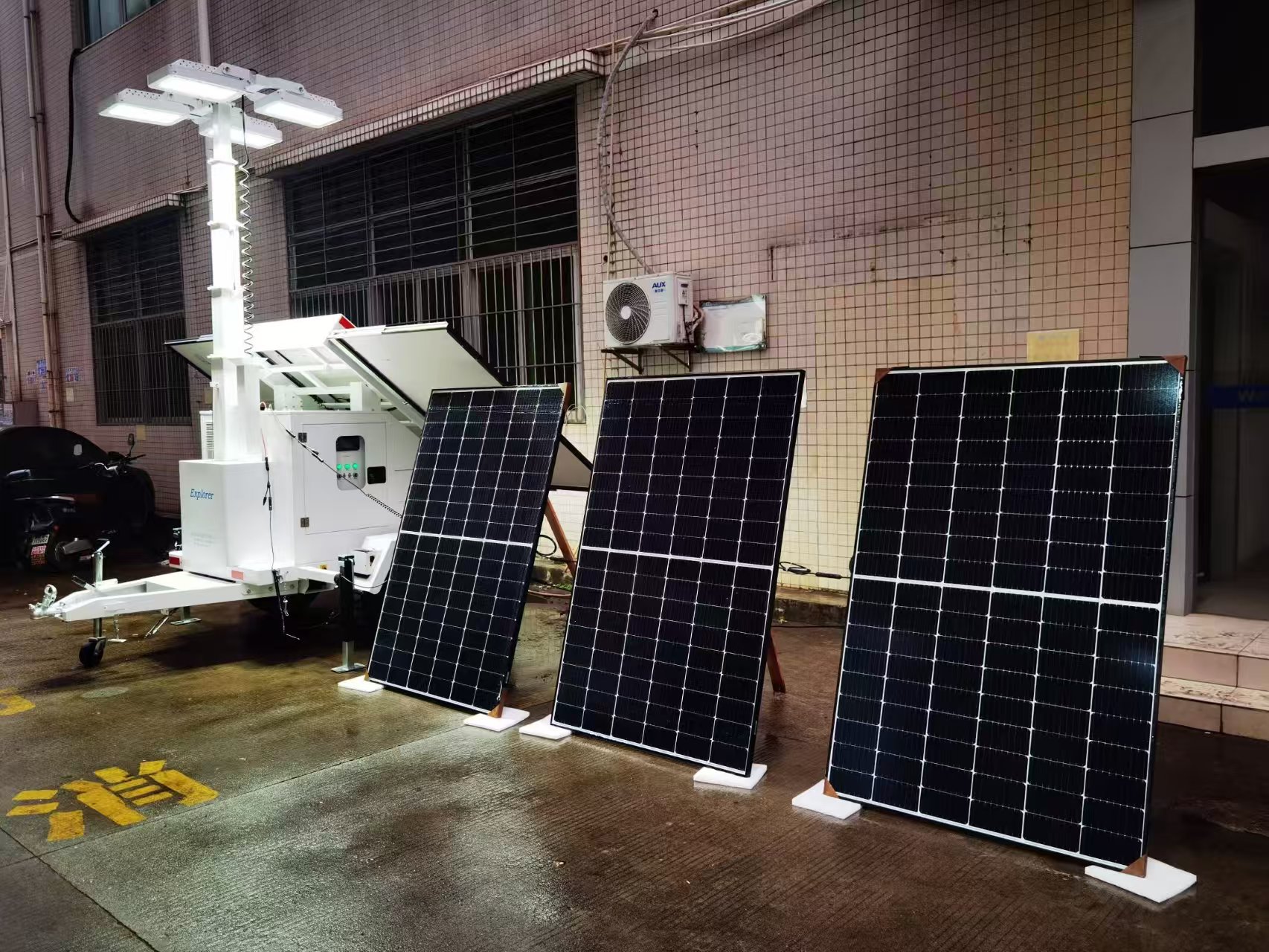

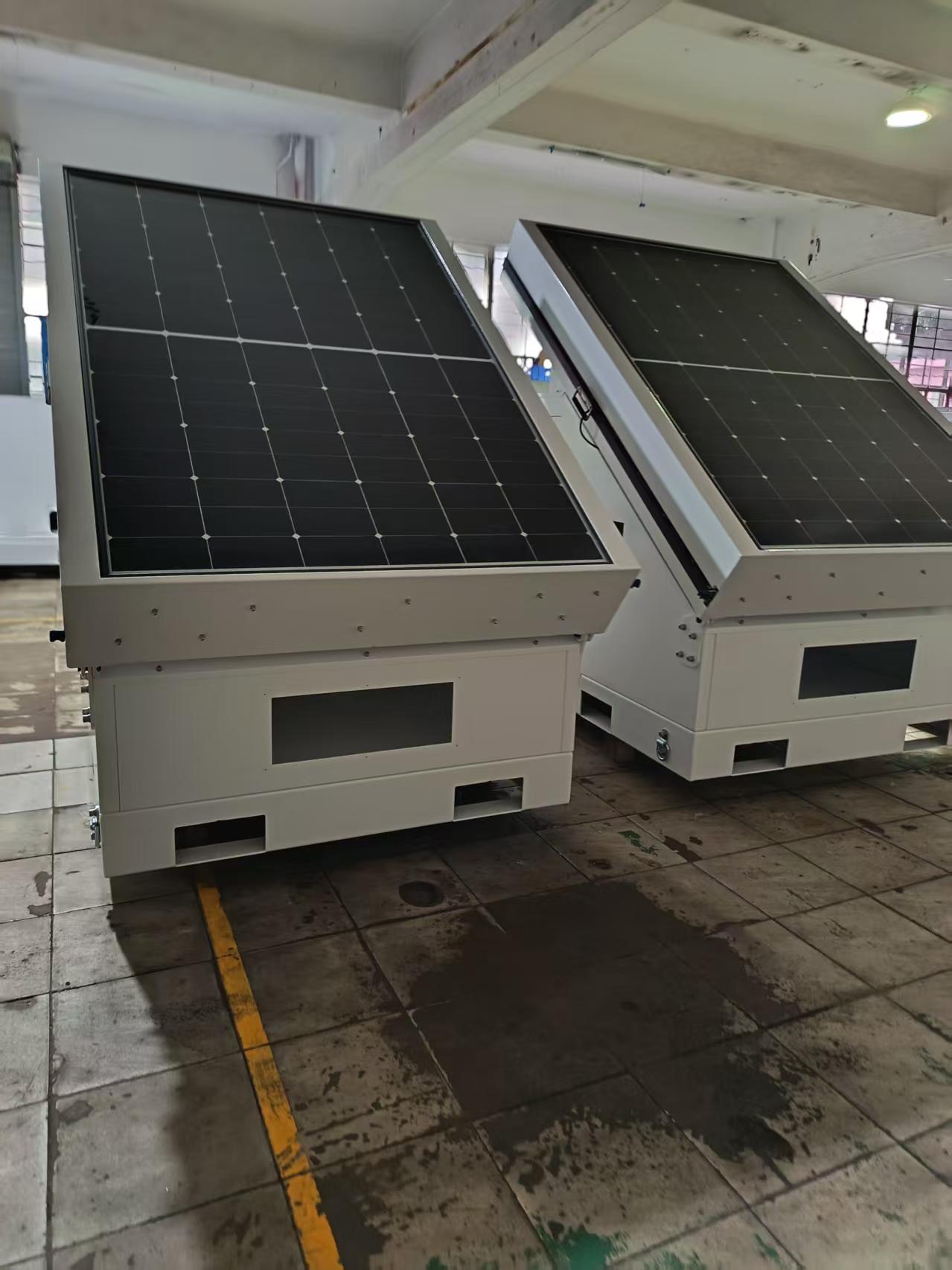

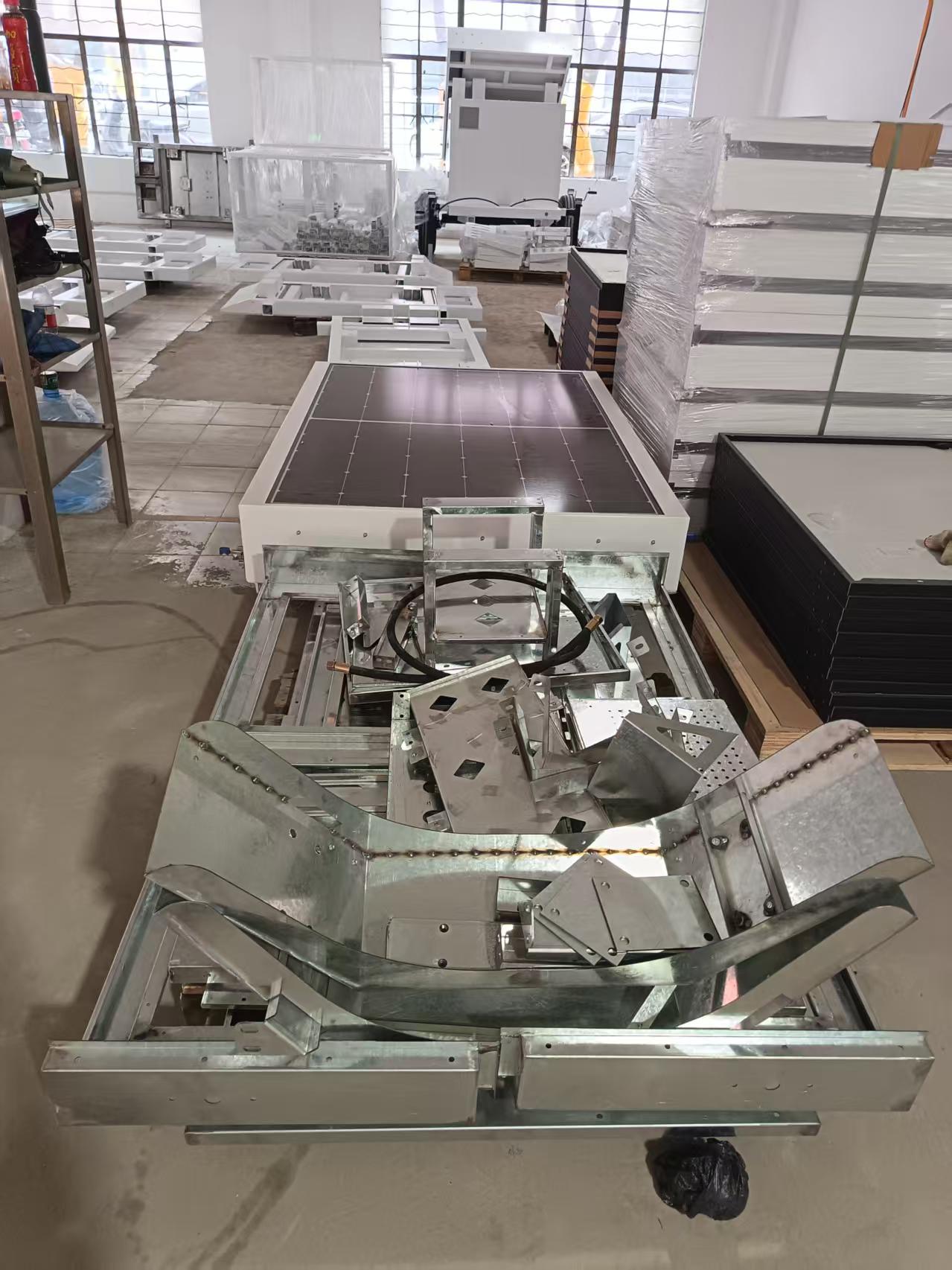

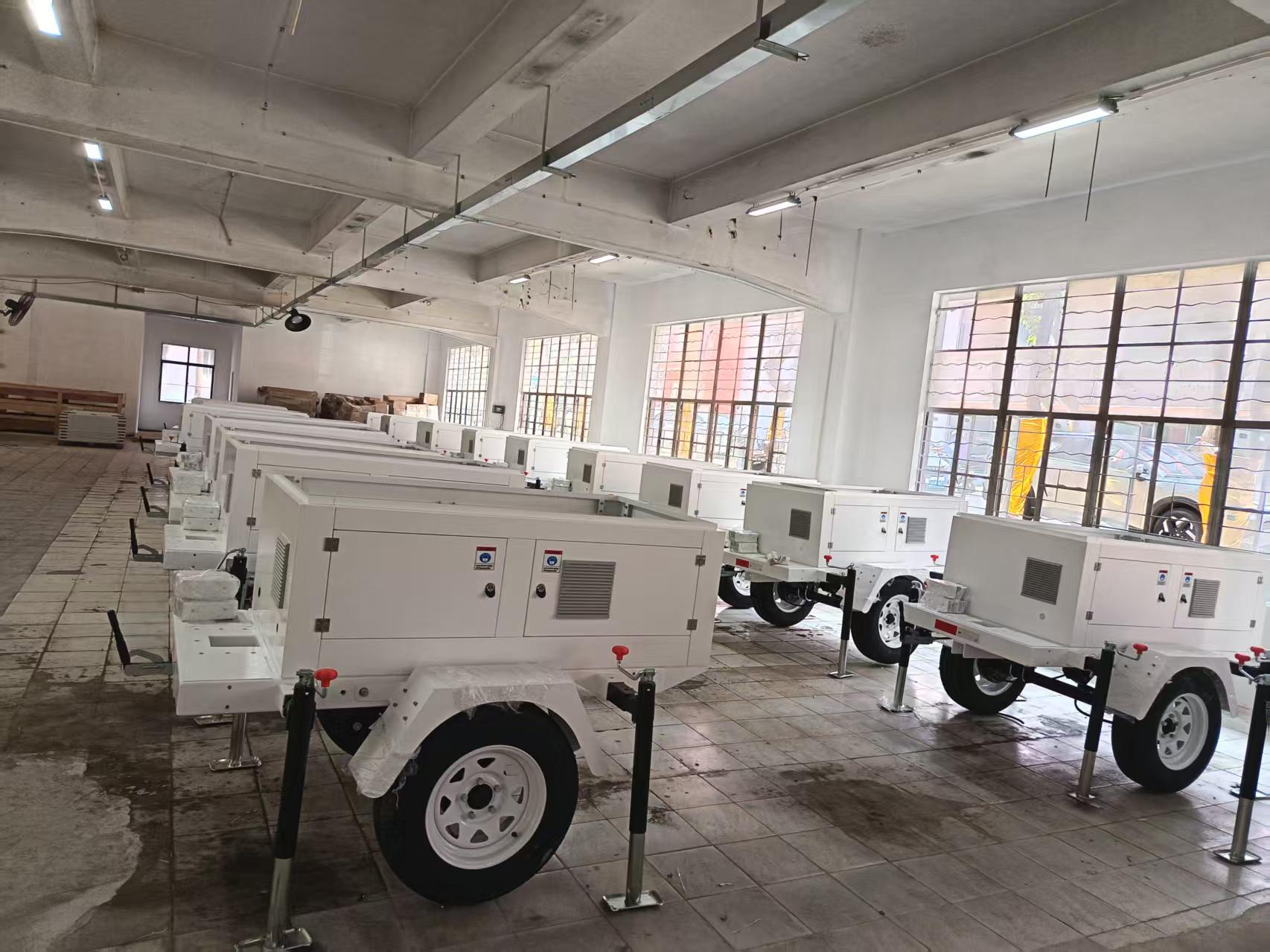

Production details:
