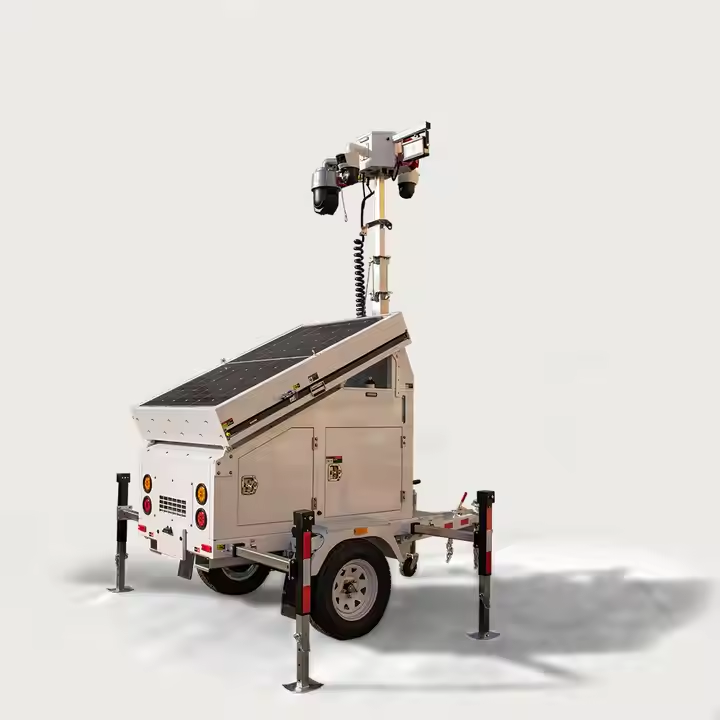

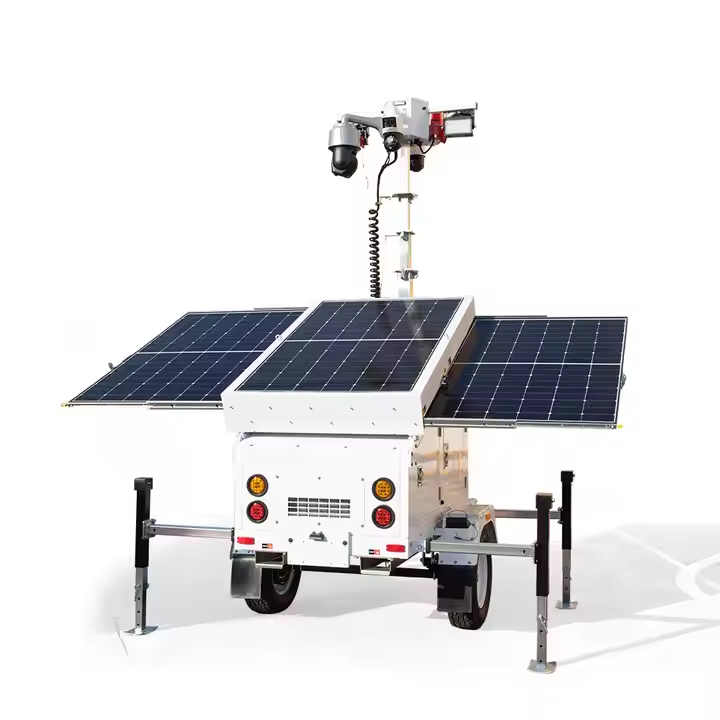

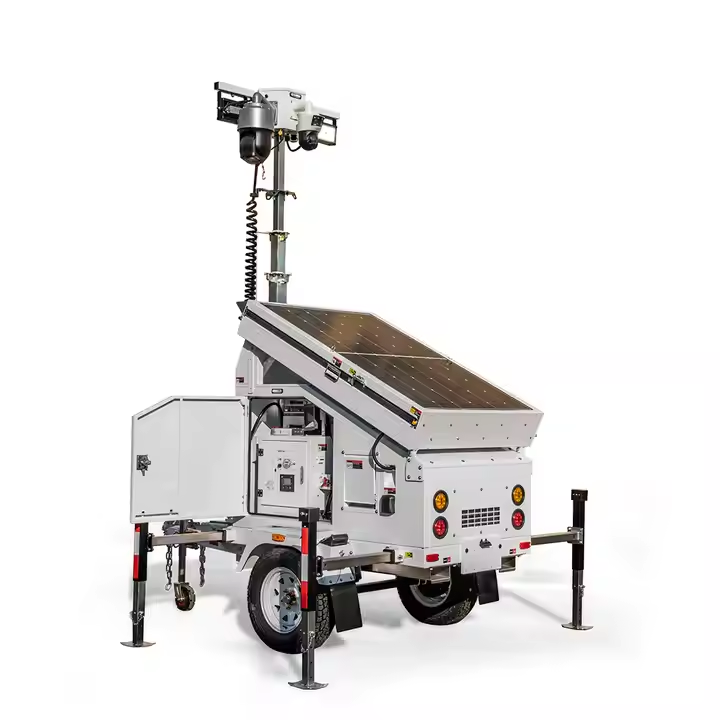

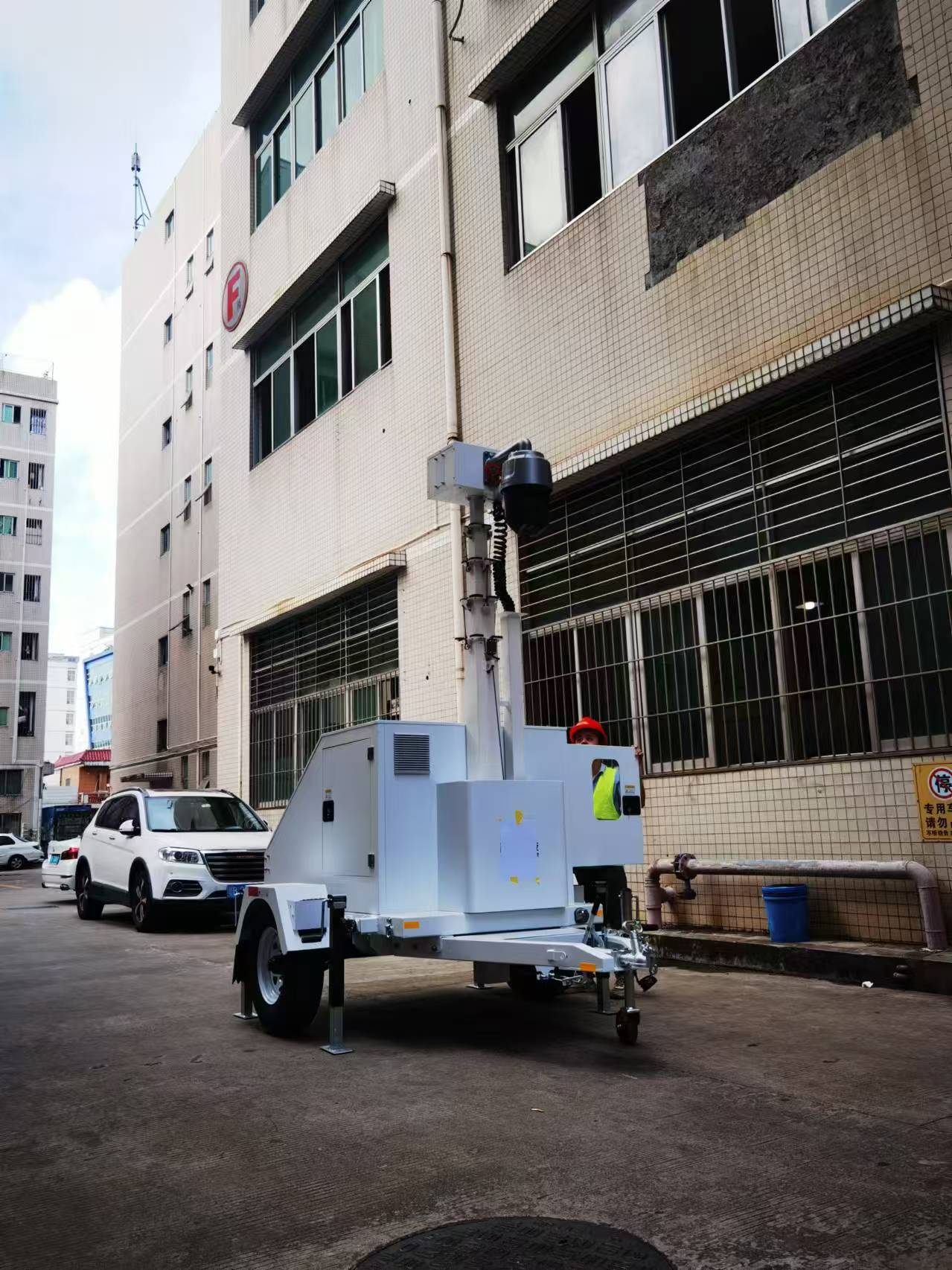

SM06 Solar Powered Surveillance Trailer

Share:
Product details

SM06 Solar Powered Surveillance TrailerSM06 Solar Powered Surveillance TrailerSM06 Solar Powered Surveillance Trailer


Customized Mobile Security Box Mobile Surveillance Box Monitoring Unit Features:

1. ENM Eletronic Mobile surveillance solar powered camera trailer are portable units that can be deployed in various locations to provide reliable security monitoring.

2. They offer numerous advantages over traditional stationary surveillance systems and provide an extensive range of applications.


3. These trailers can be easily transported from one location to another, making them ideal for temporary security needs. Mobile surveillance trailers can be used at concerts, fairs, construction sites, industrial locations, and other events that require immediate surveillance.

4. By using Mobile surveillance trailers, you can have a quick and effective solution to monitor the area and ensure the safety of everyone involved.


5. Mobile surveillance trailers are customizable and can be equipped with a variety of technology, including cameras, motion detectors, alarms, and even integrated public address systems.

6. This means that Mobile surveillance trailers can be tailored to meet specific security needs, making them an excellent choice for a wide range of applications.
   For example, if you need to monitor a large area, you can install multiple cameras in the trailer to provide a 360-degree view.


7. Instead of investing in a permanent surveillance system that can be expensive to purchase and install, you can rent an Mobile surveillance trailers for the duration of the event or project.

8. This allows you to save money while still having access to the latest security technology.




Other Configuration:
The top of the mast can be installed cameras and lights, lamp power can be customized according to customer requirements;

Cameras can be installed on the top of the mast, it is recommended that customers purchase cameras locally, we will reserve camera installation location.


Specifications:

Main control systemSystem voltageDC48V
solar controllerMPPT 40A 95%
IP ratingIP65
Device control methodControl panel
Charging methodsolar energy
Charging time8 hours (solar)
Working hours4 Pcs cameras, calculated at 2 million watts, can be used for 36 hours
Number of cameras3 (1 dome camera, 3 bolt cameras)
Communication12V 4G Router,12V 4G Router
Video recorderEnglish Hikvision Video Recorder, Hikvision 4CH NVR
Storage8TB Surveillance HDD
Vehicle warranty2 years
Solar panelSolar panelMonocrystalline silicon 2*420W
Conversion efficiency21.70%
Safety protection levelCllass II
Warranty 25 years
CertificateCSA,TUV,CE,UL
BatteryBattery TypeLithium iron phosphate battery
Battery capacity300AH 25.6VDC  7680WH
CertificateUL,CE
PoleLight pole lifting height2.5-6M
number of sections5-section pole
Lifting methodManual lift
Wind resistance levelLevel 8 (117KM/H)
Light pole materialSteel plate, hot dip galvanized anti-corrosion spray
MPPT controllerMPPT efficiency≥99.5%
MPPT voltage range120~400V
Maximum PV input power4000W
Maximum PV charging power4000W
TrailerTrailer hitch50mm  Ball/70mm Ring
Drag speed60km/h
Tire14 inches pneumatic tire
Moving method (traction)
Connector: British standard, Australian standard, Chinese standard, etc. optional
Mechanical handbrake
4 mechanical support rods
Control PanelPower consumption display
Charging status
Load status
PV voltage, current, power
Fault warning
PackageVehicle size1900*1350*6000 mm
Packing size1800*1650*2500 mm
Weight700KG
Number of containers45HQ:16pcs,
